160T Clamping Force Vertical Injection Molding Machine with Rotary Table and 1 Year Warranty
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | JINTONG |
| Numéro de modèle: | JTT-1600R |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 morceau |
|---|---|
| Prix: | $53,500-56,000 / piece |
|
Détail Infomation |
|||
| Capacité de plastification: | 400 g/s | Taille de moule: | 260 à 530 mm |
|---|---|---|---|
| Trait éjecteur: | 75 mm | Force d'éjecteur: | 34 kN |
| Volume de tir: | 570 cm3 | Taux d'injection: | 202 g/s |
| Poids d'injection: | 513 g | Vitesse de vis: | 1 à 155 tours par minute |
| Diamètre de la vis: | 55 millimètres | Écrou L/D: | 28 |
| Distance de la barre de corde: | 660 millimètres | Poids de la machine: | 7000 kg |
| Course ouverte: | 500 mm | Pouvoir: | 22 kW |
| Dimensions de la machine: | 2,8 * 2,1 * 3,4 m | ||
| Mettre en évidence: | 160T Clamping Force Vertical Injection Molding Machine,1 Year Warranty Vertical Injection Molding Machine,Vertical Clamping Plastic Injection Molding Machine |
||
Description de produit

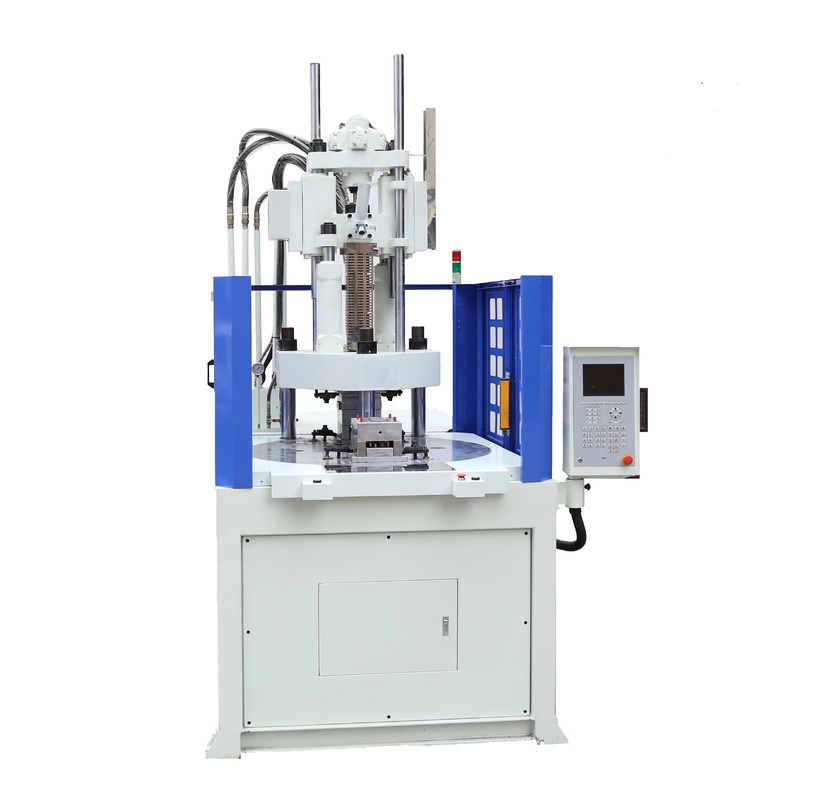

Vertical Rotary Injection Molding Machine JTT-1600R
Key Specifications
| Clamping Force | 160T |
| Injection Weight | 344-513g |
Product Features
- Vertical clamping and vertical injection design
- Easy torque, speed, and deceleration distance adjustment
- Computer-controlled rotary table with multiple rotation modes
- Optional energy-saving motor available
- Adjustable clamping force, injection weight, and shot speed
- Multi-station configuration options (2, 3, or more stations)
Product Images
Technical Advantages
Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
Low heating: Reduces cooling water requirement by 55%
Low noise: Optimized motor operation reduces noise by 15-20db
Precision: Closed-cycle control with pressure sensor and motor rotary encoder for consistent output
Service Commitment
With 17 years of experience, we've developed systematic service processes and maintain a 24-hour response mechanism to promptly address customer needs and provide optimal solutions.
Packaging & Delivery
