Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | JINTONG |
| Numéro de modèle: | JTT-1200R |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 morceau |
|---|---|
| Prix: | $32,000-40,000 / piece |
|
Détail Infomation |
|||
| En plastique transformé: | PP, ABS | Capacité de plastification: | 250 g / s |
|---|---|---|---|
| Taille de moule: | 150 à 520 mm | Nombre d'éjecteur: | 2 |
| Trait éjecteur: | 75 mm | Force d'éjecteur: | 27 kN |
| Volume de tir: | 410 cm3 | Taux d'injection: | 202 g/s |
| Poids d'injection: | 369 g | Vitesse de vis: | 1 à 220 tours par minute |
| Diamètre de la vis: | 50 mm | Écrou L/D: | 25 |
| Distance de la barre de corde: | 620 MILLIMÈTRES | Poids de la machine: | 5500 KG |
| Pouvoir: | 24,5 kilowatts | ||
| Mettre en évidence: | 2 Stations Vertical Injection Molding Machine,3 Stations Rotary Table Injection Molding Machine,250g/s Plasticizing Capacity Injection Molding Machine |
||
Description de produit

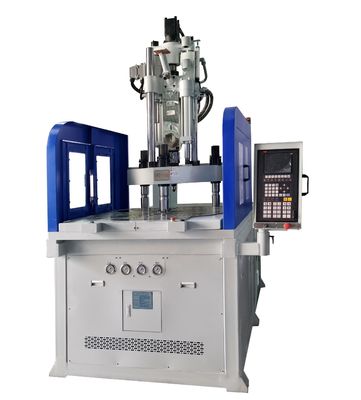

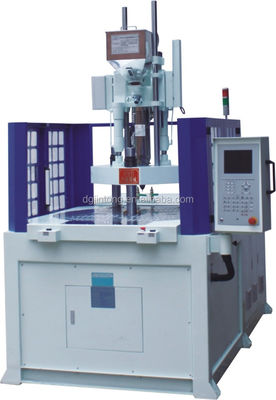

Rotary Table Vertical Plastic Injection Molding Machine 120T
Rotary table vertical injection molding machine JTT-1200R
| Clamping Force | 120T |
| Injection Weight | 237-369g |
Vertical clamping, vertical injection. Easy to set torque, speed, deceleration distance and stand number segmentation. Computer program control for rotary table direction including forward-rotating, reverse-rotating, and forward/reverse alternative rotating. Optional energy-saving motor available.
Main Features
- Vertical clamping and vertical injection design
- Adjustable clamping force, injection weight and shot speed to meet production requirements
- Available in 2-station, 3-station or multi-station configurations (one up die, two or four down die)
- Optimized for operating insert parts and improving productivity
Product Advantages
- Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
- High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
- Low heating: Reduces cooling water quantity by at least 55% compared to similar models
- Low noise: Optimized motor operation with imported bearing and oil pump reduces working noise by 15-20db
- Precision: Fully closed-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.
Packing & Delivery
