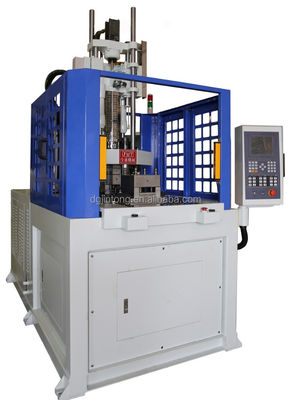

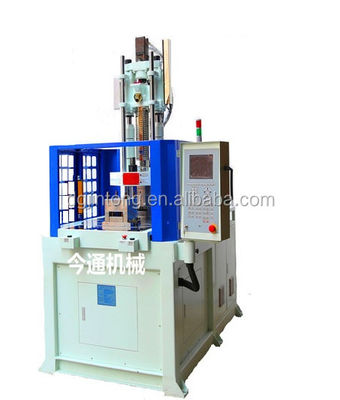

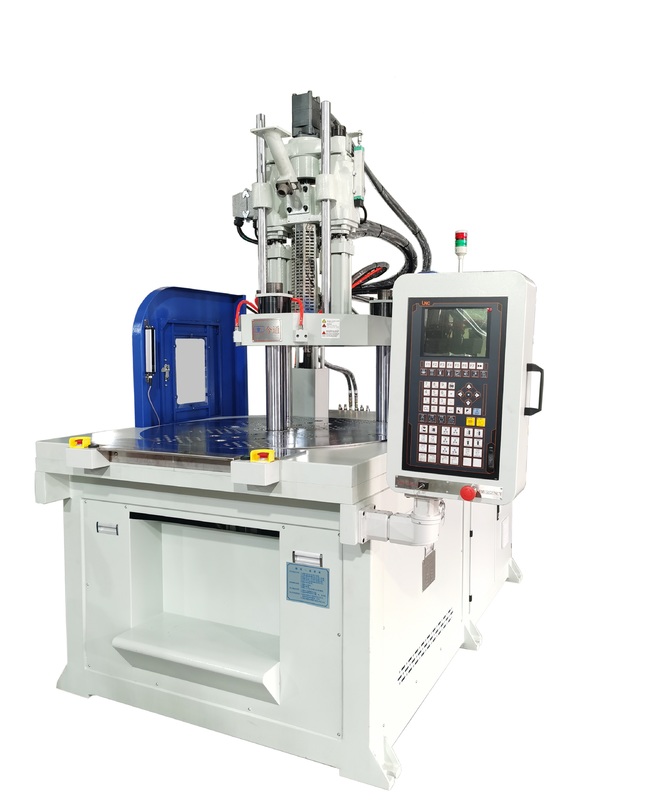

55T Vertical Injection Molding Machine with Rotary Table for Energy-saving Plastic Processing
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | JINTONG |
| Numéro de modèle: | JTT-550R |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 morceau |
|---|---|
| Prix: | $27,360-28,500 / piece |
|
Détail Infomation |
|||
| Capacité de plastification: | 100 g/s | Taille de moule: | 110 à 400 mm |
|---|---|---|---|
| Nombre d'éjecteur: | 2 | Trait éjecteur: | 45 mm |
| Force d'éjecteur: | 13 kN | Volume de tir théorique: | 156 cm3 |
| Taux d'injection: | 113 g/s | Poids d'injection: | body{background-color:#FFFFFF} 非法阻断155 window.onload = function () { docu |
| Vitesse de vis: | 1 à 200 tours par minute | Diamètre de la vis: | 40 mm |
| Ratio de vis L / D: | 23 | Distance entre les barres d'attache: | 510 millimètres |
| Poids de la machine: | 2300 kg | Course ouverte: | 400 mm |
| Pouvoir: | 12,8 KILOWATTS | ||
| Mettre en évidence: | Vertical Clamping Injection Molding Machine,Vertical Injection Molding Machine,Energy-saving Rotary Table Injection Molding Machine |
||
Description de produit
Vertical Rotary Injection Molding Machine JTT-550R
55T Clamping Force | 80-141g Injection Weight
Manufactured in Guangdong factory, this vertical rotary injection molding machine features vertical clamping and injection for efficient operation.
Key Features
- Vertical clamping and injection design
- Easy torque, speed, and deceleration distance adjustment
- Computer-controlled rotary table direction (forward/reverse/alternative)
- Optional energy-saving motor available
- Multi-station capability (2, 3, or more stations)
- Adjustable clamping force, injection weight, and shot speed
Technical Specifications
| Model: JTT-550R | ||
|---|---|---|
| Injection System | ||
| Screw Diameter | mm | 40 |
| Injection Pressure | kg/cm² | 1260 |
| Theoretical Shot Volume | cm³ | 170 |
| Injection Rate | cm³/sec | 113 |
| Screw Stroke | mm | 140 |
| Screw Speed | rpm | 150 |
| Heating Capacity | kw | 5.3 |
| Clamping System | ||
| Clamping Force | tons | 55 |
| Opening Force | tons | 8.9 |
| Min Mold Height | mm | 200 |
| Opening Stroke | mm | 200 |
| Max Open Daylight | mm | 400 |
| Mold Dimension | mm | 370×450 |
| Rotary Table Diameter | 1080 | |
| Ejector Force | tons | 1.8 |
| Ejector Stroke | mm | 60 |
| Other Specifications | ||
| Motor Power | kw | 7.5 |
| Machine Dimension | m | 2.6×1.8×2.85 |
| Machine Weight | tons | 3 |
Product Advantages
Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
Low heating: Saves 55% cooling water quantity
Low noise: Reduced working noise by 15-20db
Precision: Closed-cycle control with pressure sensor and motor rotary encoder improves consistency
Service Advantages
With 17 years of customer service experience, we offer systematic and standardized service with 24-hour response mechanism to promptly solve customer problems.

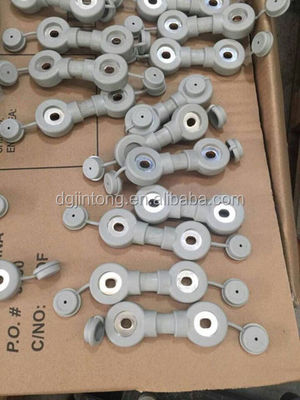

Product Images
