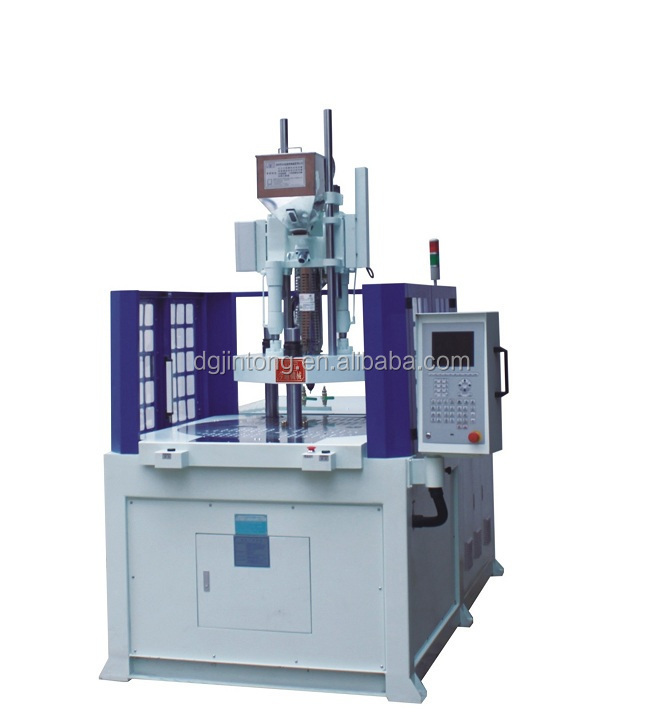

55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
Détails sur le produit:
| Lieu d'origine: | Guangdong, Chine |
| Nom de marque: | JINTONG |
| Numéro de modèle: | JTT-550R |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 morceau |
|---|---|
| Prix: | $19,000-21,000 / piece |
|
Détail Infomation |
|||
| Capacité de plastification: | 150 g / s | Taille de moule: | 160 à 300 mm |
|---|---|---|---|
| Nombre d'éjecteur: | 2 | Trait éjecteur: | 60 mm |
| Force d'éjecteur: | kN 1,8 | Volume de tir théorique: | 170 cm3 |
| Taux d'injection: | 113 g/s | Poids d'injection: | body{background-color:#FFFFFF} 非法阻断155 window.onload = function () { docu |
| Vitesse de vis: | 0 à 215 tr/min | Diamètre de la vis: | 40 mm |
| Ratio de vis L / D: | 22 | Distance entre les barres d'attache: | 510 millimètres |
| Poids: | 2400 kilogrammes | Course ouverte: | 540 millimètres |
| Pouvoir: | 12,8 KILOWATTS | ||
| Mettre en évidence: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
Description de produit
Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description
Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications

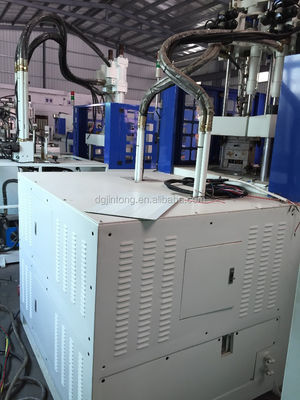

Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
